Key Features:

1. Rack Cabinet Simulator

• Dynamic Scaling: Create multiple racks with customizable heights (U units).

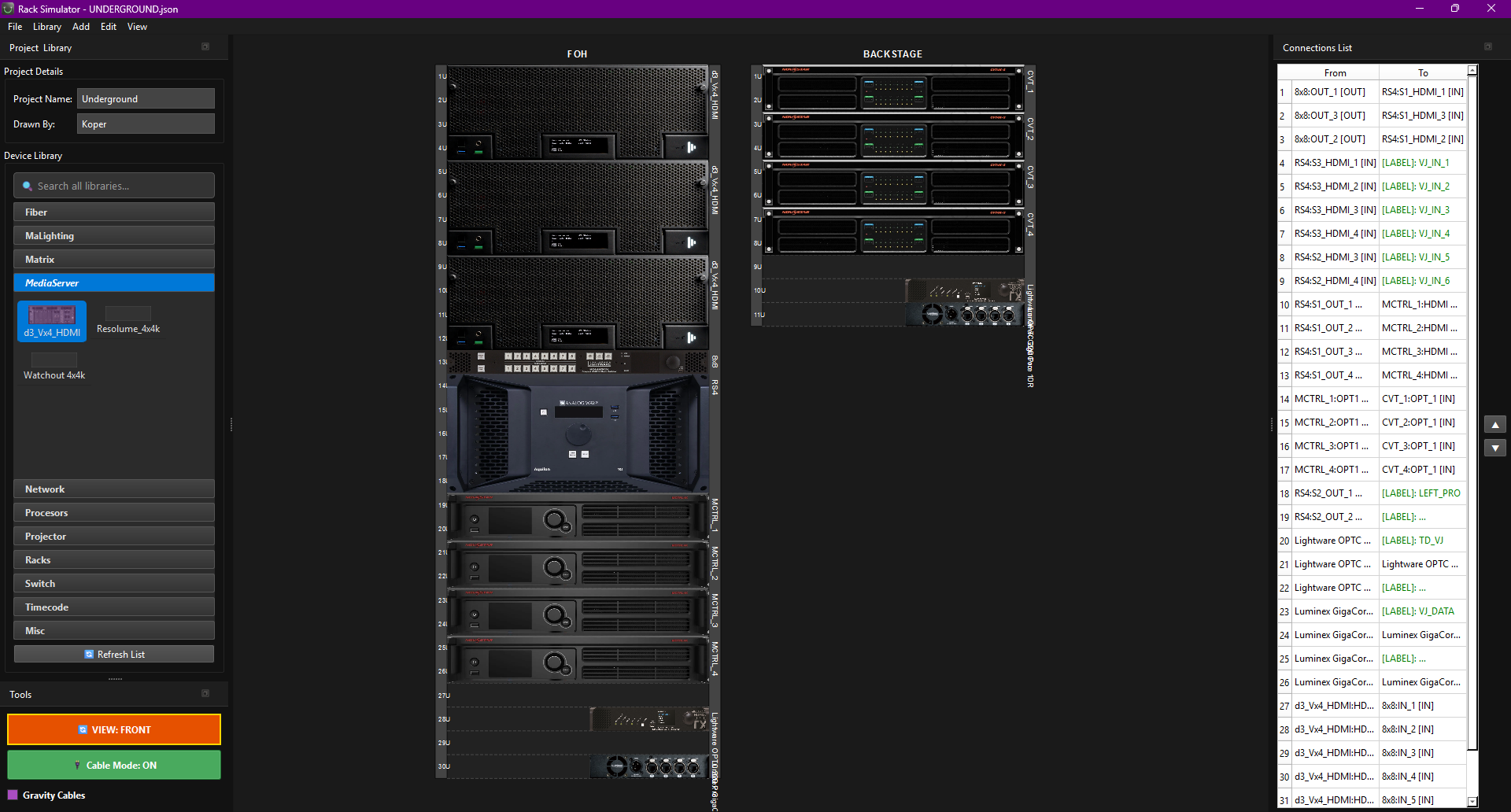

• Dual-View System: Instant toggle between Front and Rear views using a priority hotkey (Tab) for seamless patch planning.
• Multi-Rack Environment: Add, remove, and arrange multiple rack enclosures and surfaces within a single infinite workspace.

2. Intelligent Device Library

• JSON-Based Database: Store device templates including precise dimensions, high-res graphics, and exact port coordinates.
• Drag & Drop Workflow: Quickly populate racks by dragging components from the library panel directly into the cabinets.
• Built-in Device Creator: A dedicated tool to design custom hardware templates from scratch, defining port counts, signal types, and directions.

3. Advanced Connectivity (Cabling)

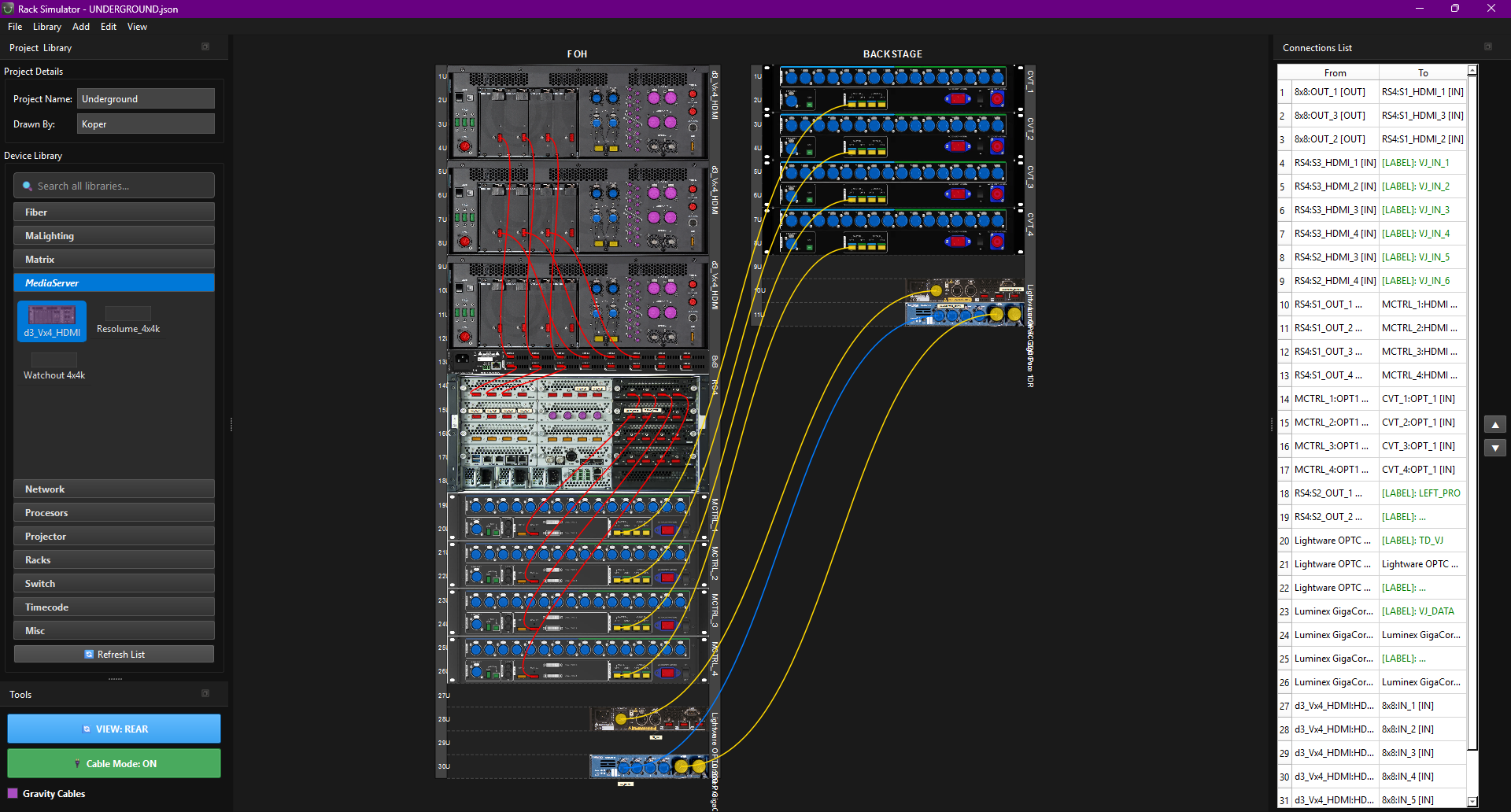

• Virtual Patching: Visual point-to-point connections between device ports.
• Cable Physics: Support for straight lines or Gravity Cables (curved paths simulating natural slack and cable weight).
• Automated Cable Schedule: A real-time connection table that tracks Source, Destination, and Signal Type, allowing for easy sorting and auditing.

4. Professional UI (Docking System)

• Flexible Layout: A "Dock Widget" system allowing users to detach, move, or hide panels (Library, Tools, Connections) to optimize workspace for multi-monitor setups.
• Application-Level Hotkeys: Priority shortcuts (like Tab for flipping views) that work regardless of which panel is currently focused.
• Undo/Redo Stack: A complete action history for risk-free designing and easy error correction.

5. Documentation & Export

• Rack Templates: Export fully configured racks (including devices and internal cabling) as reusable templates for future projects.
• PDF Report Generation: Generate professional documentation including high-resolution rack elevations and full cable schedules.

• Automatic Thumbnails: The software automatically generates visual snapshots of your rack designs for easy identification in the library.
